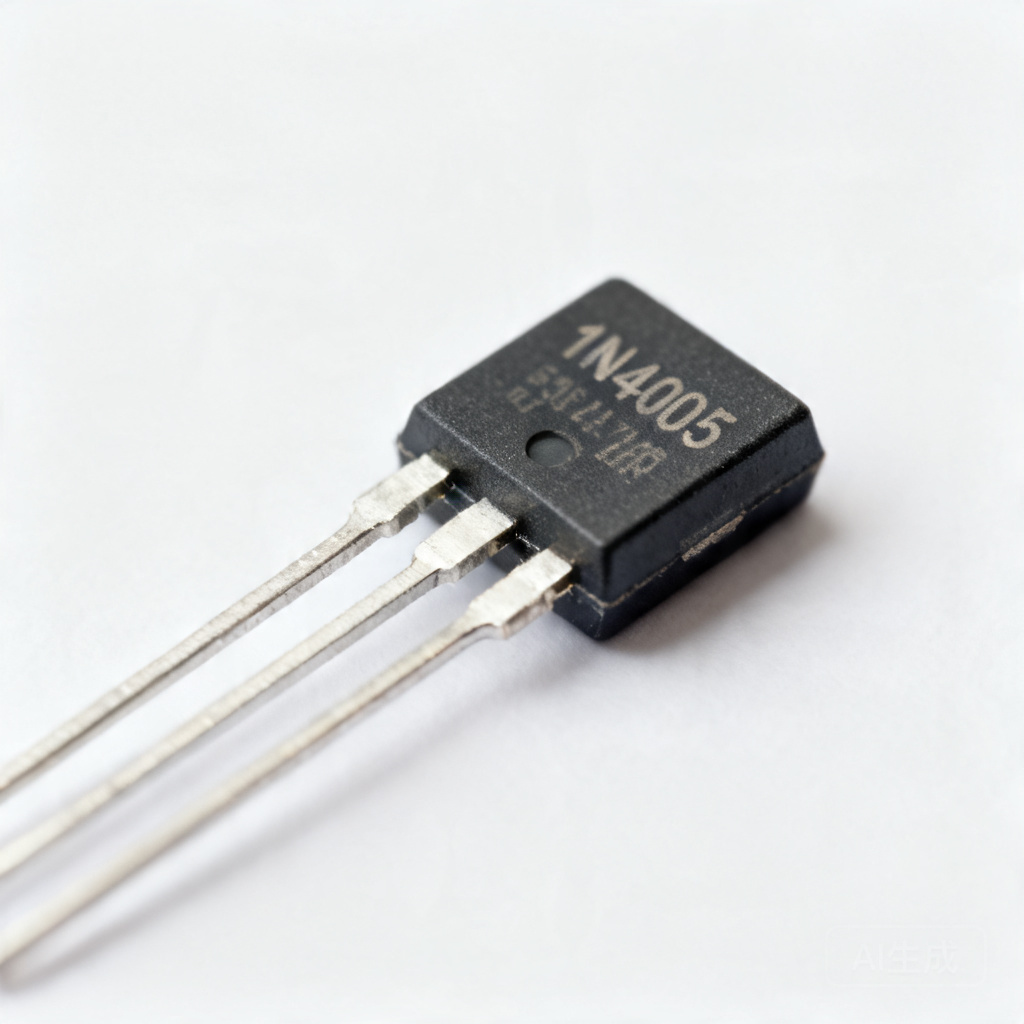

1N4005 Diode - Standard Rectifier
The 1N4005 is a versatile silicon rectifier diode designed for high-voltage applications. It is ideal for converting alternating current (AC) to direct current (DC) in various electronic circuits.
Overview
Overview
The 1N4005 diode is part of the 1N400x series, which is renowned for its reliability and efficiency in rectifying applications. Operating at a maximum reverse voltage of 600V, the 1N4005 is suitable for use in power supplies, battery chargers, and other electronic devices where robust voltage handling is essential. Its construction allows it to efficiently handle both forward and reverse current, making it a preferred choice among engineers and hobbyists alike.
Key Specifications
- Type: Silicon Rectifier Diode
- Maximum Reverse Voltage (VR): 600V
- Forward Current (IF): 1A
- Forward Voltage Drop (VF): 0.7V at 1A
- Package Type: DO-41
- Temperature Range: -55°C to +150°C
Applications
The 1N4005 diode is widely used in various electronic applications, particularly in power supply circuits where rectification of AC to DC is required. Its high reverse voltage capability makes it suitable for use in transformer-based power supplies, AC-to-DC converters, and battery charging systems. Additionally, the 1N4005 can be utilized in circuits requiring protection against voltage spikes or reverse polarity, functioning similarly to a Schottky diode in certain low-voltage applications. Its robustness also allows it to be employed in automotive electronics and industrial machinery, proving its versatility across different sectors. As a go-to component for engineers, the 1N4005 is an essential part of any electronic design toolbox.
